Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Hua dong cable
  • Model Number: YJV YJV22 YJV32
  • Insulation Material: XLPE, XLPE or PVC
  • Type: Low Voltage, Low Voltage, Medium Voltage, High Voltage
  • Application: Power Station, Power Station, Railway, Underground
  • Conductor Material: Copper, Copper or Aluminum or Copper Clad Aluminum
  • Jacket: PVC, PVC
  • Model Number:: YJV, VV/ 4 core Low Voltage Power Cable
  • Conductor: Stranded AL/ CU/ CCA
  • Performance: Flame Retardant, U/V Protection, Waterproof
  • Armour: Aluminum Wire/Tape, Steel Wire/Tape,Non-magnetic Stainless Steel Wire
  • No.of Cores: 1C, 2C, 3C, 4C,

Packaging & Delivery

Packaging Details 6/10KV GRADE IEC 60502Cu/XLPE/LC/SWA/PVC CABLE 3Cx35 Sq.mm,4Cx240 Sq.mmXLPE insulatedSteel Wire Armoured, Lead outersheathedInsulated High Quality 120mm2 Power Cable be packged in Wooden Drum, Iron Wooden Drum or according to your request
Delivery Time Shipped in 15 days after payment



Product Description

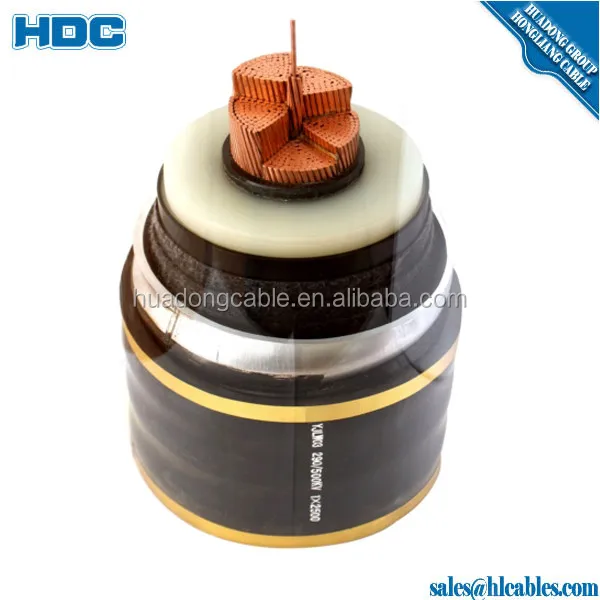

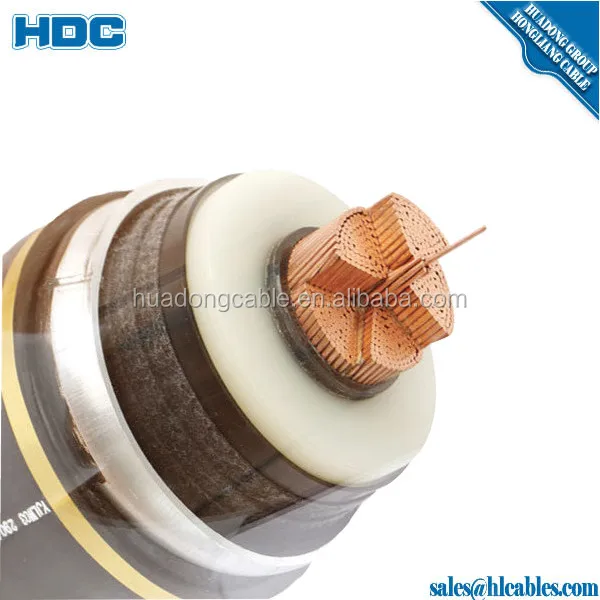

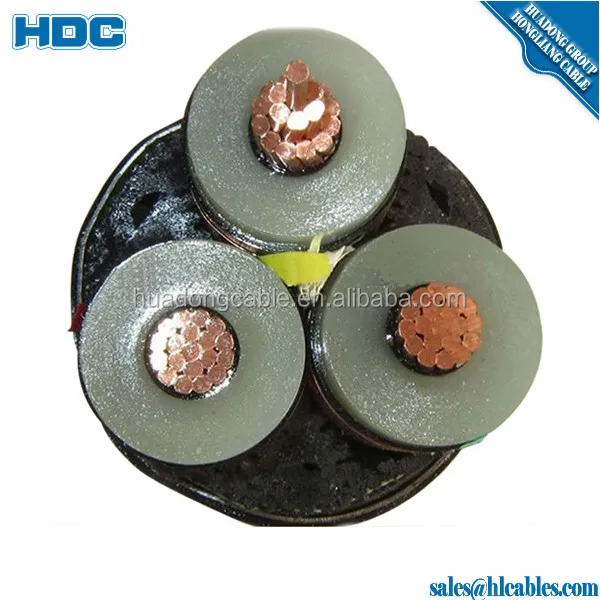

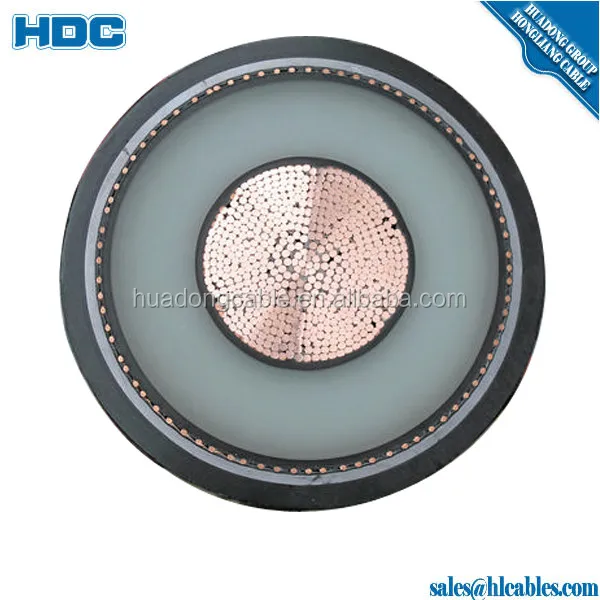

6/10KV GRADE  IEC 60502Cu/XLPE/LC/SWA/PVC CABLE  3Cx35 Sq.mm,4Cx240 Sq.mmXLPE insulatedSteel Wire Armoured, Lead outersheathed


Cu conductor XLPE insulated PVC sheated steel wire armored power cable  not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90'C. It is convenient for using, and they can be laid with no restriction of different elevation.

Rate
Voltage(kv)
Sectional
Area(mm 2 )
No.of Core
1st class0.6/11.8/33.6/66/108.7/1512/2018/3021/35
2nd class1/13/36/68.7/1012/1518/20-26/35
1 Core 1.5-80025-80025-120025-120035-120050-120050-120050-1200
2 Core 1.5-18525-185
3 Core 1.5-40025-40025-40025-40035-40050-40050-40050-400
4 Core 2.5-40025-400
5 Core 2.5-40025-400


TypeNameMain Application
Cu CoreAl Core
YJV
YJY
YJLV
YJLV
XLPE insulated,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid
YJV22
YJV22
YJLV22
YJV22
XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force
YJV32
YJV32
YJLV32
YJLV32
XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power CableFor laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force
YJV42
YJV42
YJLV42
YJLV42
XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power CableAble to bear positive pressure and pulling force

Note:"ZR-"Include ABC three kinds of flame retardent cables,which are spectively indicated in "ZRA-" or "ZRB-" "ZRC-".For example:"ZRB-YJV","ZRA-YJV22".

Main Technical Quota
1.DC resistance:conductor resistance of finished cable at 20’C per kilometer is not more than the following values.
Nominal Section
Area(mm 2 )
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Copper Core12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221
Aluminum Core18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367

2.Voltage Test and Partial Discharge Test
Rate
Voltage Uo(kv)
Item
0.6/11.8/33.6/66/6
6/10
8.7/10
8.7/15
12/2018/20
18/30
21/3526/35
VoltageTest Voltage3.56.512.52130.5426373.591
Test Time555555555
Partial Discharge TestTest Voltage--6.210.415.120.831.136.345
Discharge Capacity--10101010101010

Packaging & Shipping

  6/10KV 26/35KV Medium Voltage Cable Cu/XLPE/SWA/PVC XLPE Insulated High Quality 120mm2 Power Cable packing is :

Package:

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request.



Our Services

 1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,

installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,

If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from

our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and

take charge in all expenses of reinstallation.

Company Information

 Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,

and domestic& internationatrade.

Established year: 2005

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.



FAQ

 1.what is our payment term ?

Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

Sure, we provide the free sample for customer to checking.
