Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Huadong
  • Model Number: ABC cable
  • Insulation Material: XLPE
  • Type: Low voltage
  • Application: Overhead
  • Conductor Material: Aluminum
  • Jacket: no jacket
  • conductor: aluminum
  • core: duplex/triplex/quadruplex
  • voltage: low voltage
  • application: overhead
  • Standard: IEC
  • Conductor: strand
  • stock: in stock
  • delivery: on time
  • sample: free sample

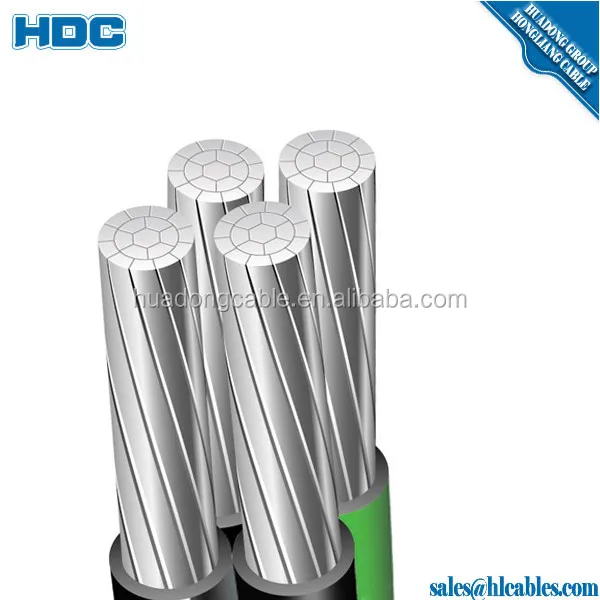

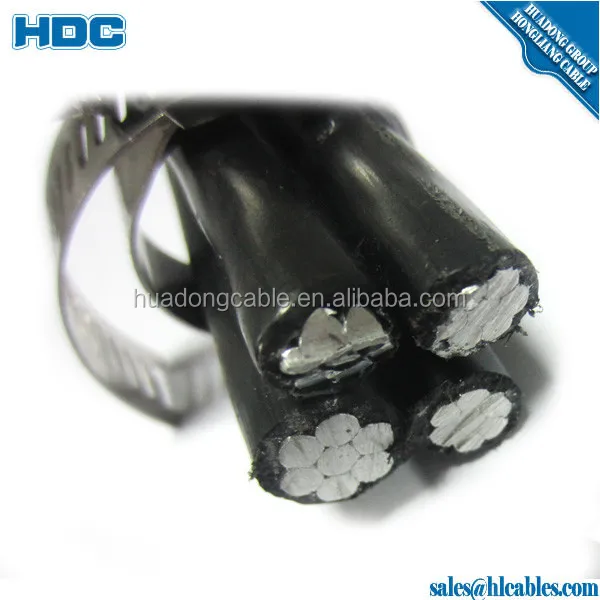

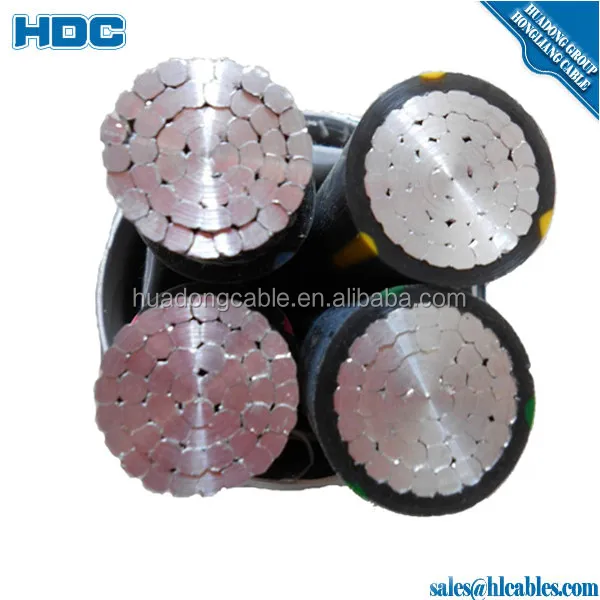

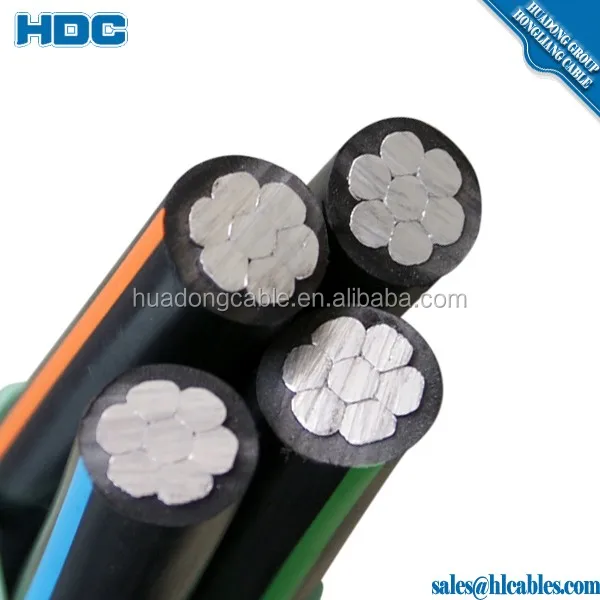

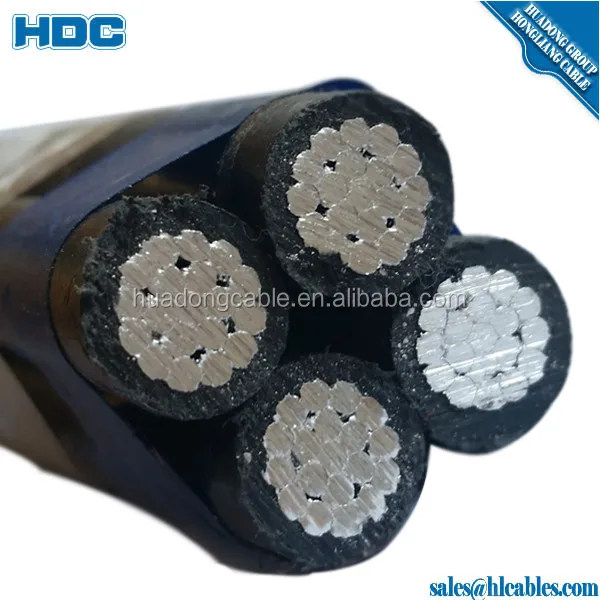

  • Item name: quadruplex aerial bundled cable self-supporting abc cable

Packaging & Delivery

Packaging Details self-supporting quadruplex aerial bundled cable abc cable
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement .
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
Delivery Time 7 days

self-supporting quadruplex aerial bundled cable abc cable.

Product Description
Item name: self-supporting quadruplex aerial bundled cable  abc cable.

abc cable specification?

1,0.6/1KV
2. Conductor: Pure annealed copper or aluminum
3. Insulation: XLPE/PE/PVC
4. Cores: 1 C, 2C, 3C, 4C
5. Nominal Cross-section: 10mm2 to 400mm2
6. Standard: GB/T 14049-2008 IEC 60502
7. Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C .
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q
9.Packing: Wooden Drum or according to the customer requirement
10.Remark: The cable can be of flame retardant, fire resistance and other property.

abc cable application?

For single core PVC or XLPE insulated or covered aerial cable without messenger or neutral conductor,
the phase conductor may be AAC or AAAC or ACSR or Copper.

For more than one core PVC or XLPE insulated 11kv abc cable with or without messenger or
neutral conductor and with or without street lighting conductor, the phase conductor
and street lighting conductor are AAC with PVC insulation,and the messenger or neutral conductor is AAAC or ACSR with or without

abc cable insulation?
Operating Characteristics of Aerial Bundle ABC Cable
Rated voltage: Up to and including 0.6/1(1.2)kV;

permissible continuous operating temperature of conductor: 90oC(XLPE insulated), 70 oC (PE insulated), 70 oC (PVC insulated); temperature of conductor during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated); 11kv abc cable
The ambient temperature under installation should not be lower than: -20 oC.

Application of abc cable?

PVC or XLPE insulated 11kv abc cable as a new-type aerial cable is used for overhead electric power transmission,
extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

abc cable Construction?

Code*WordPhase conductorBare Neutral MessageNominal lay LengthWeight Per
1000 ft.(lbs.)
Allo wable Amp acitles
Size
(A WG)
StrandingInsul
Thick(Mils)
Size
(AWG)
StrandingRated
Strength
(lbs.)
inchesXLPPOLYXLPPOLY
AAC Neutral-messenger
Pekingese61456756310.3661618570
Collie67456756310.3664648570
Dachshund41454788110.36929211590
Spaniel47454788110.36969611590
Doberman274527135014.88147147150120
Malemute1/09601/07199014.88234234205160

abc cable Application?

Used to supply 3-phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts phase-to-phase or less and at conductor temperature not to exceed 75 for polyethylene insulated conductors or 90 for crosslinked polyethylene(XLP) insulated conductors.
abc cable Construction?

Code*WordPhase conductorBare Neutral MessageNominal lay LengthWeight Per
1000 ft.(lbs.)
Allo wable Amp acitles
Size
(A WG)
StrandingInsul
Thick(Mils)
Size
(AWG)
StrandingRated
Strength
(lbs.)
inchesXLPPOLYXLPPOLY
AAC Neutral-messenger
Clydessdale41454788120.5819819810080
Pinto47454788120.5821121110080
Mustang274527135025.42318318135105
Criollo1/09601/07199025.42503503180140
Percheron2/011602/07251029.97619619205160
Hanovarian3/017603/019331035.18764764235185
Oldenburg4/018604/019402035.18945945275210
Lippizaner336.41980336.419614638.7915191519370280

Packaging & Shipping

self-supporting quadruplex aerial bundled cable abc cable.

1)100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.



Our Services

self-supporting quadruplex aerial bundled cable abc cable.

Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!

Company Information



abc cable Standard

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we  can produce based on customers' requirements and specifications.

abc cable Certificate?

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
